Diagonal Cracks: The Direction Tells the Story

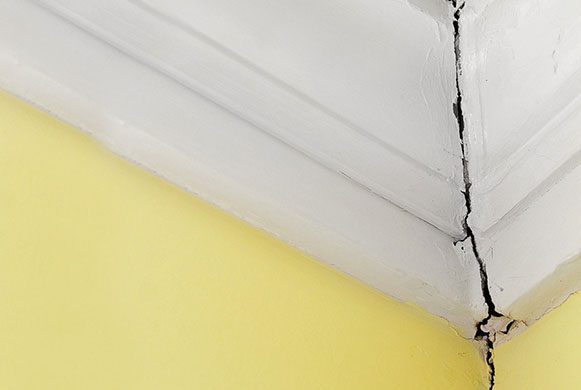

Diagonal cracks form when one part of a wall or foundation moves relative to another and the material tears along the stress line. The usual driver in our region is foundation movement from expansive clay that swells when wet and shrinks when dry, plus freeze-thaw cycling that lifts and drops footings. Because concrete is far weaker in tension than compression, even modest movement opens an angled crack. The crack's direction often points toward the section that moved.

Often, yes. A thin vertical crack is frequently shrinkage from concrete curing and may be cosmetic. A diagonal crack, especially one starting at a door or window corner, usually reflects differential movement, where one area has settled or heaved relative to another. That said, severity depends on width and whether the crack is growing. We assess the pattern, the width, and any offset between the faces during the inspection.

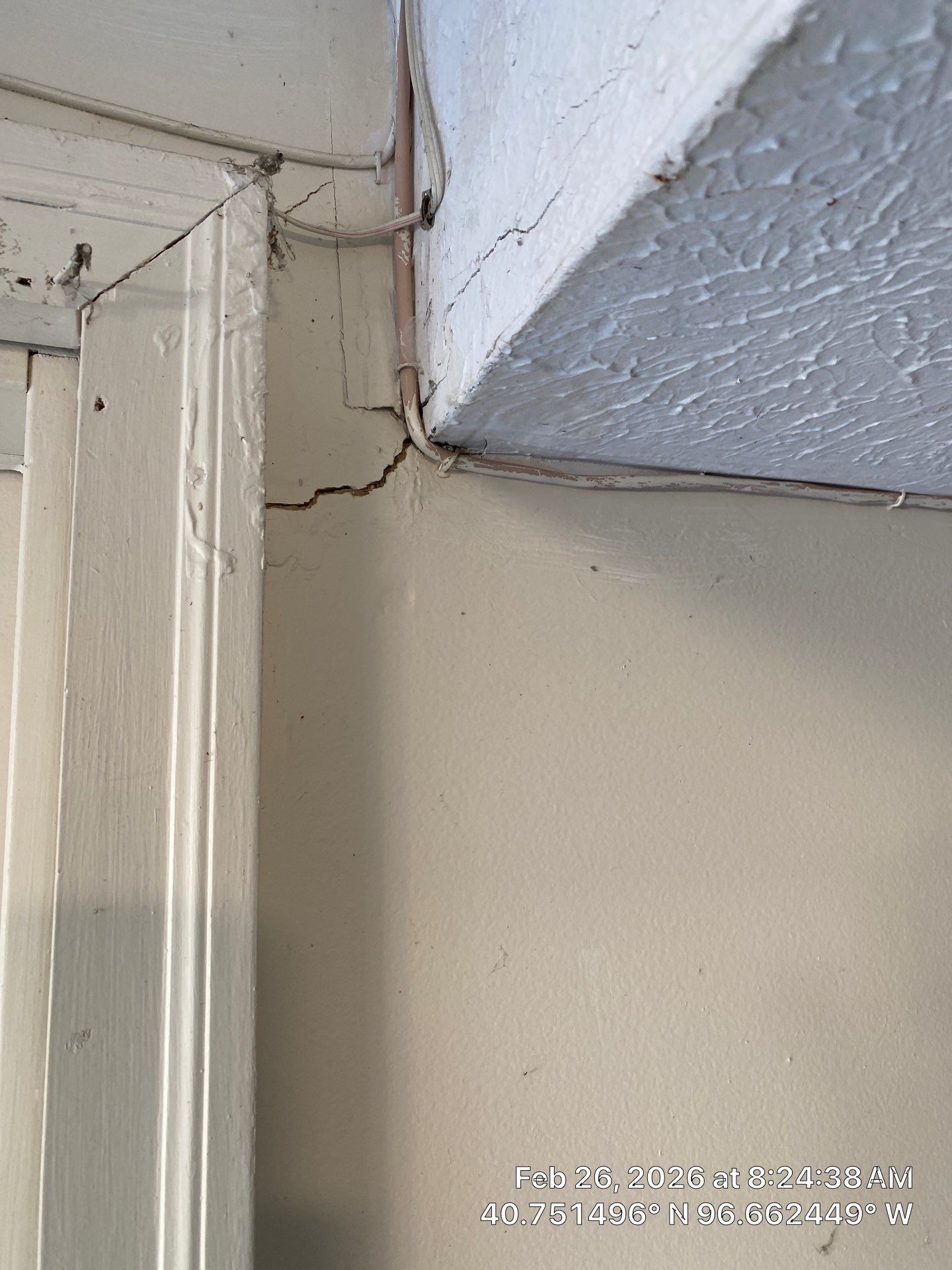

Yes, that is the most common reason we see them. As a foundation settles or heaves unevenly, the wall above is pulled out of square and tears diagonally, typically off the corner of an opening. When the crack is paired with sticking doors, sloped floors, or a face offset, foundation movement is very likely. A free, no-pressure inspection confirms whether the movement is active and what is driving it.

Repairing the crack alone rarely lasts if the foundation is still moving, because the patch will simply crack again. The durable approach stabilizes the foundation first so the movement stops, then the crack can be sealed. For poured walls, epoxy crack injection bonds the crack closed once the structure is stable. For ongoing settlement, piers may be used to support the affected section. The inspection determines the right combination.

Most diagonal cracks are a warning sign of movement rather than an immediate danger, but they should not be ignored. The risk is that the movement continues, widening the crack and spreading to floors, framing, and other walls. The longer active movement runs, the larger the eventual repair. Diagnosing the cause early usually means a smaller, less costly stabilization than waiting. A written estimate after an on-site inspection reflects your scope.
