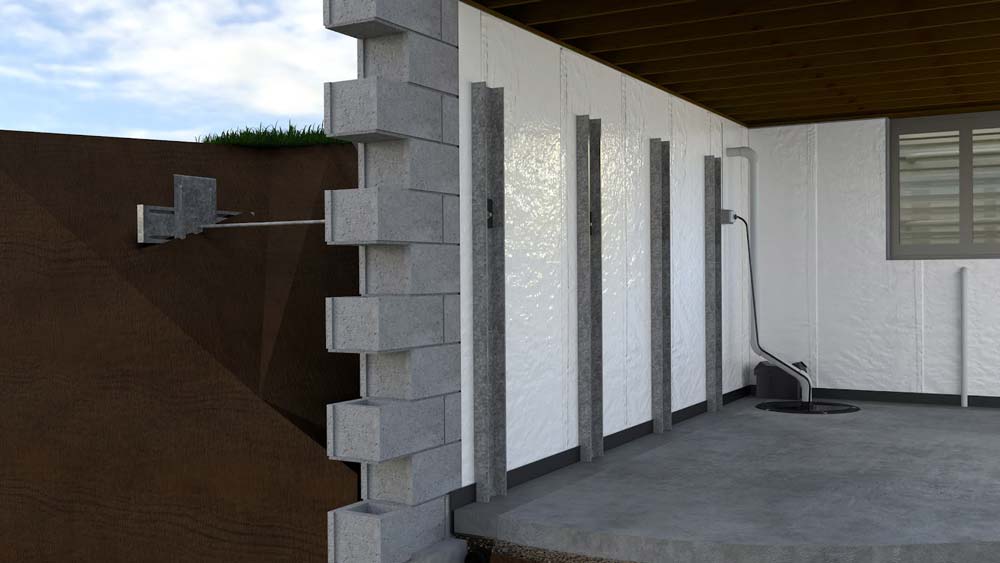

Stop Bowing Basement Walls With Engineered Floor-To-Ceiling Steel I-Beam Bracing

Epp Foundation Repair prices I-beam wall bracing at roughly $400 to $800 per beam installed across eastern Nebraska, Iowa, Kansas, and Missouri markets. A standard 8-by-10 foot wall section with 4 to 8 beams falls in the $3,000 to $6,000 range. Full-wall bracing across a 25 to 30-foot wall typically runs $8,000 to $15,000 depending on beam count, ceiling height, and whether joist sistering encounters obstructions. Pricing includes the steel beams, brackets, anchors, joist sister lumber, and labor. A written estimate after on-site inspection reflects your scope. Dave Epp does not quote bracing sight-unseen and will not start without measuring the wall.

Epp Foundation Repair backs every I-beam installation with a 25-year structural warranty covering the beams, the steel brackets, and the mechanical anchorage at the slab and joist. If the bracing system fails to restrain the wall under normal soil loading during the warranty period, Epp returns to inspect and repair or replace at no charge. The warranty is documented at install with photos, baseline deflection readings, and torque values so the next homeowner or a buyer's inspector can verify the system was installed to spec.

Bowing basement walls do not stabilize on their own. Saturated expansive clay continues to push against the wall every spring rain and every freeze-thaw cycle, and a wall that has already cracked horizontally has lost most of its remaining tensile capacity. Epp Foundation Repair has documented walls move from one inch of deflection to over three inches across two spring seasons in eastern Nebraska. Once a wall passes about three inches of bow, I-beam bracing is no longer the appropriate solution and wall replacement enters the conversation. Which typically runs five to ten times the cost of timely bracing. Waiting also forecloses options. A wall braced at one inch holds at one inch; a wall braced at two and a half inches holds at two and a half. There is no rewind.

Epp Foundation Repair recommends carbon fiber straps first when the wall is clean concrete, bowed under two inches, and free of paint or coatings that prevent epoxy bond. I-beams are the right answer when the wall surface cannot accept a structural epoxy bond. Painted block walls, walls with horizontal cracking through the strap path, walls with efflorescence or freeze-spall that compromise the substrate, or homeowners who prefer a visible mechanical solution over a hidden bonded one. The trade-offs are honest: I-beams take up 2 to 3 inches of interior floor space along the wall line and remain visible unless covered with framing and drywall, while carbon fiber stays flush to the wall. Epp will tell you which system fits your wall on the first visit rather than push the higher-margin option.

No. I-beam wall bracing stabilizes the wall in its current position. It does not restore the wall to plumb. Pulling a deflected wall back requires either full excavation and resetting from the exterior, or a wall anchor system with helical plates installed in the soil beyond the wall and tensioned over time. Either is a different scope of work and a different price. Epp Foundation Repair is direct about this on the first visit because homeowners sometimes expect bracing to straighten a wall, and the disappointment shows up later if expectations aren't set. If wall position restoration matters, the conversation moves to wall anchors or replacement before any beams are ordered.

No. I-beam bracing is a structural repair and has no waterproofing function. If a bowed wall is also leaking. Horizontal cracks weeping after heavy rain, efflorescence on the interior face, water at the cove joint. The water problem still needs its own solution: interior drain tile, exterior membrane, epoxy injection of specific cracks, or yard regrading to move surface water away from the foundation. Epp Foundation Repair frequently pairs bracing with drainage work on the same project because saturated expansive clay swells against the wall hardest, so solving the water problem reduces the soil load that bowed the wall in the first place.
