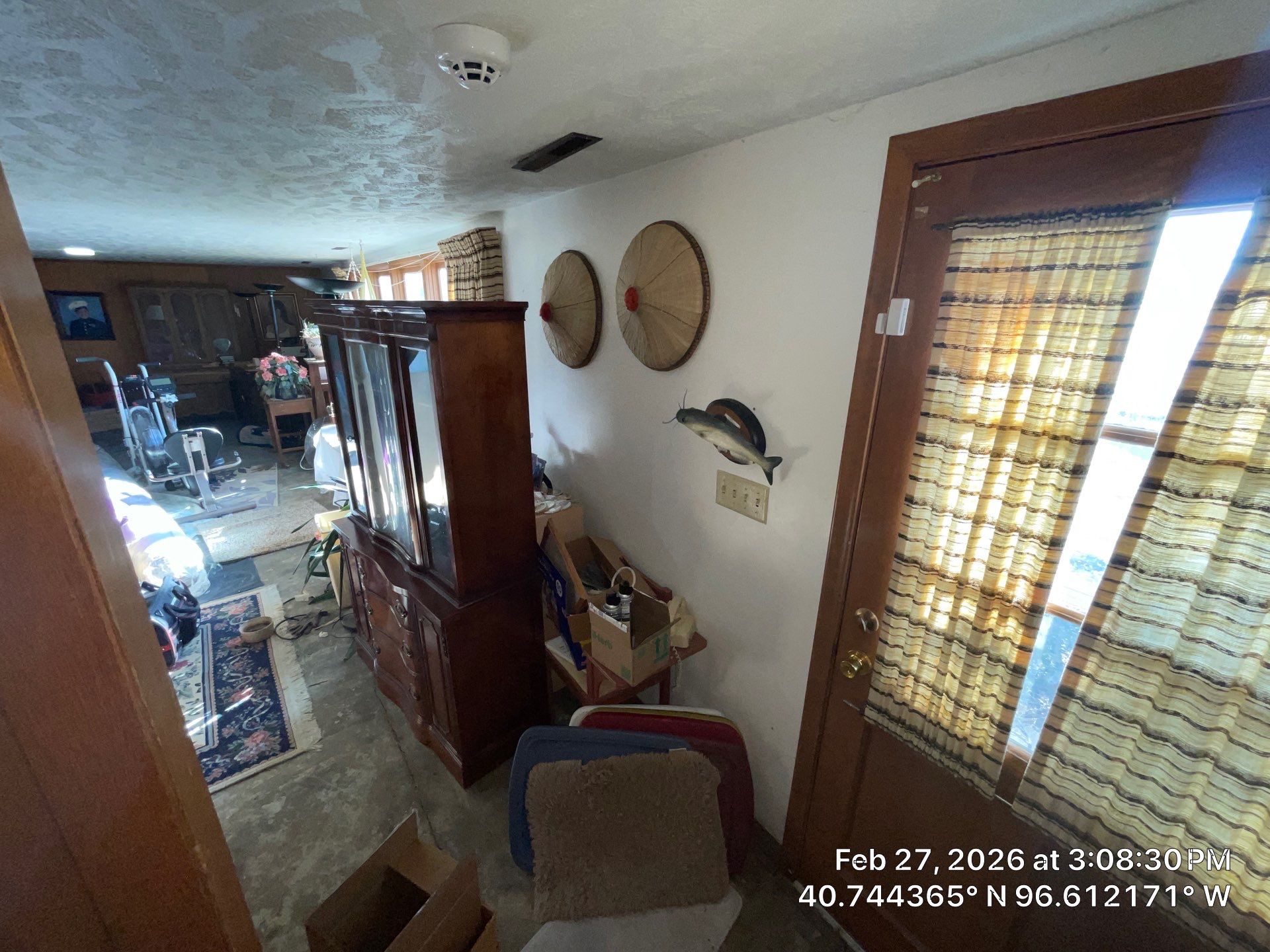

Concrete Floor Cracks Diagnosed by Cause, Not by Width Alone at an Epp Foundation Repair project

Foundation Repair · Problem Signs · Since 1994

Cracked Concrete Floors Diagnosed by Cause and Stabilized at the Source

Epp Foundation Repair has read concrete floor cracks across Nebraska, Iowa, Kansas, and Missouri since 1994. Crack width alone never tells the whole story; the pattern, the location, and the movement history do.

Let's take the first step toward a healthy home.

A local specialist will inspect your foundation, walk you through the findings, and send a clear estimate. no cost, no pressure.

Book instantly with Driive

BBB Accredited

Fully Insured

"By Your Side" Guarantee

What this symptom means

Concrete Floor Cracks Diagnosed by Cause, Not by Width Alone: diagnosed and explained.

Epp Foundation Repair separates concrete floor cracks into four diagnostic categories before recommending any repair: shrinkage (cosmetic and inevitable), settlement (perimeter dropping), heave (center rising), and void (sub-slab support gone). Since 1994, Dave Epp and his crew have inspected roughly 18,000 homes across Lincoln, Omaha, Des Moines, Grand Island, Norfolk, and St. Joseph, and roughly 60% of the floor cracks they see are simple shrinkage cracks under 1/8 inch that require no repair at all. The remaining 40% point to a sub-slab cause. Eroded fill, plumbing leak, expansive clay heave, or perimeter settlement, and crack width alone is not enough to tell them apart. Pattern and re-measurement do the diagnostic work.

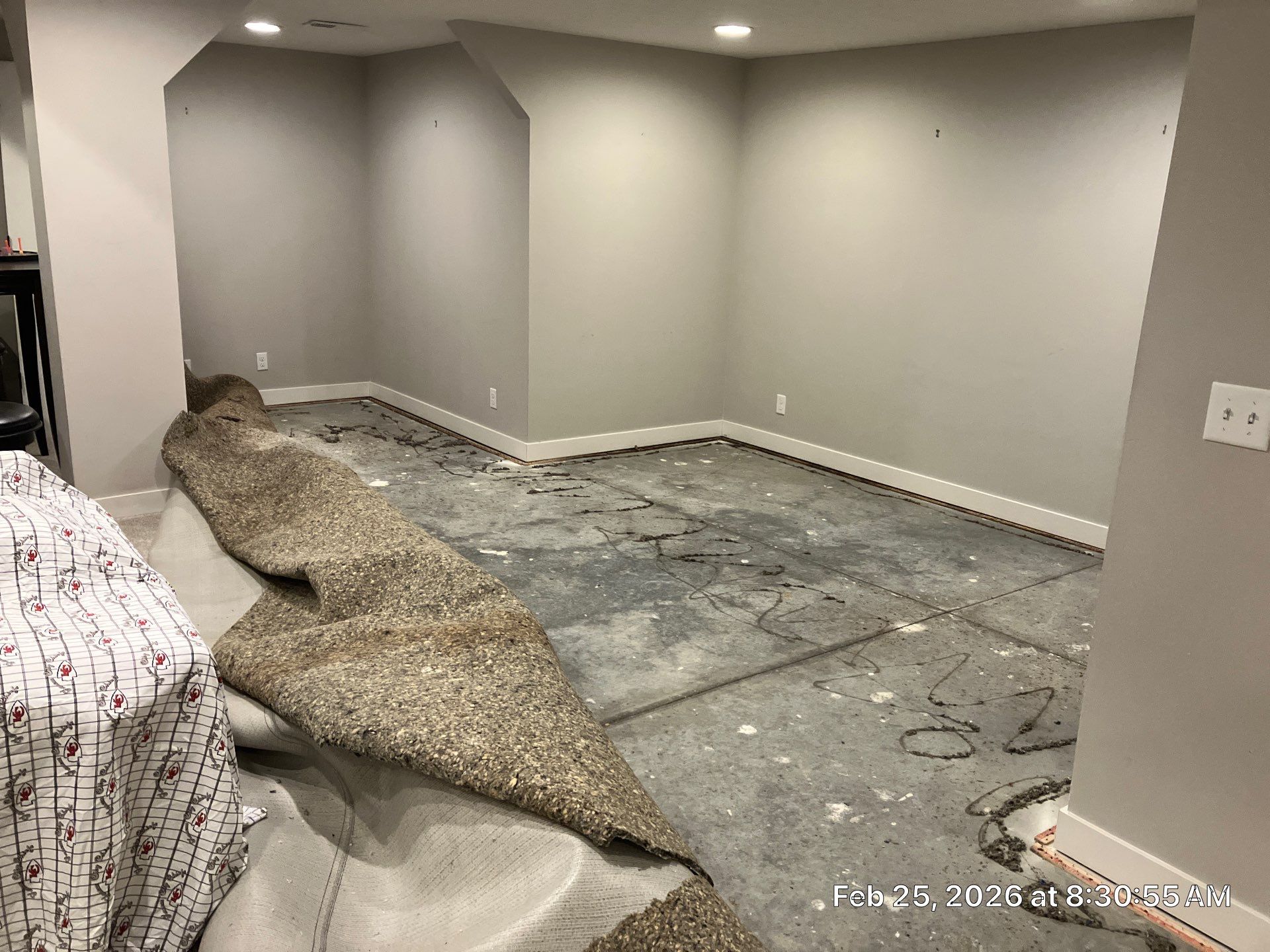

Concrete Floor Cracks Diagnosed by Cause, Not by Width Alone diagnosed by Epp Foundation Repair

Catch It Early

Floor Crack Patterns That Demand a Sub-Slab Inspection

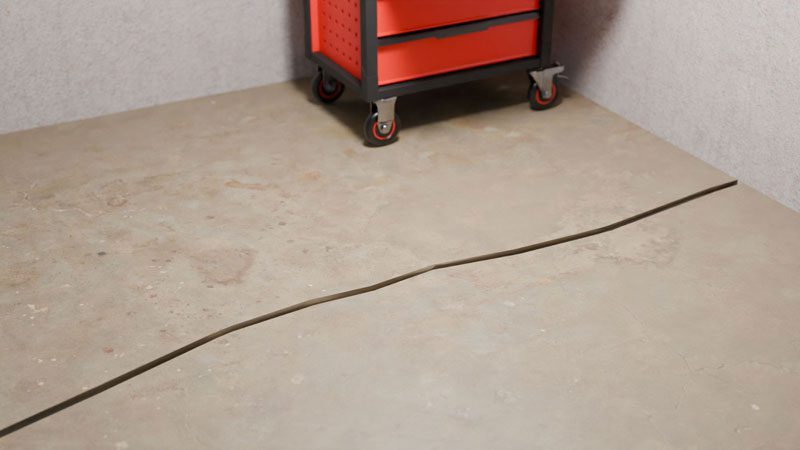

Early warning signs of concrete floor cracks diagnosed by cause, not by width alone on a Midwest home

Cracks wider than 1/8 inch that have grown in the last 12 months

Any concrete floor crack wider than 1/8 inch is past the shrinkage threshold and indicates either settlement, heave, or void. Documented growth (a photo with a coin for scale a year ago, compared to today) confirms active movement and triggers a crack monitor installation.

Crack paired with a damp spot or hollow sound when tapped

A floor crack accompanied by a persistent damp patch, an unexplained water bill increase, or a hollow ring when the slab is tapped near the crack almost always means a sub-slab void has formed.

Crack parallel to the perimeter wall, 12 to 24 inches off the wall

A long crack running parallel to the basement or garage wall, located one to two feet from the wall, is the textbook signature of perimeter slab settlement on loess or silt. The crack opens as the slab edge drops away from the perimeter footing.

Crack across slab center paired with interior doors rubbing at the top

A diagonal or branching crack across the interior of a slab-on-grade floor, paired with interior doors that now rub at the top of the jamb rather than the bottom, points to slab heave from expansive clay swelling beneath the slab center.

Most Common Causes

What causes concrete floor cracks diagnosed by cause, not by width alone in Midwest homes.

Concrete shrinkage during cure (cosmetic, inevitable)

All concrete loses roughly 0.04 to 0.06 inches of length per 10 feet during the first year of cure as water evaporates. Slabs poured without enough control joints, or with control joints spaced more than 8 to 10 feet apart on a 4-inch slab. Will crack on their own line to relieve the stress. Hairline shrinkage cracks under 1/8 inch with straight, parallel edges are cosmetic.

Perimeter slab settlement on loess and silt fill

Across eastern Nebraska and western Iowa, basement and garage slabs poured on uncompacted loess backfill or silt sub-base settle 1/2 to 2 inches over the first 20 years of the home's life. The slab edges drop, the slab center stays put, and a crack forms parallel to the perimeter wall. Often 12 to 24 inches off the wall. Where the slab snaps along its weakest line.

Expansive clay heave at slab center

Across Kansas, Missouri, and southeast Nebraska, slab-on-grade floors built over prairie clay (plasticity index above 30) heave at the center when the clay swells from a plumbing leak, downspout discharge, or seasonal saturation. The slab edges, anchored by the perimeter footing, stay down; the center rises 1/2 to 1-1/2 inches. The crack pattern is a long, diagonal or branching crack across the slab interior, often paired with interior door rubbing at the top of the jamb.

Void from plumbing leak or eroded sub-slab fill

A pinhole leak in a buried supply line or sewer can erode 5 to 20 cubic feet of fill from beneath a slab over a few months, leaving an unsupported span. The slab eventually cracks across the void, and the crack widens fast (sometimes 1/8 inch or more in 30 days). This pattern usually shows up first as a damp spot, an unexplained water bill increase, or a hollow sound when the slab is tapped.

Cold-joint failure and freeze-thaw spalling at slab edges

Cold joints between two pours that did not bond cleanly become natural failure lines. Combined with the 50-plus freeze-thaw cycles per winter that Nebraska, Iowa, and northern Missouri experience, water entering a cold joint can expand and lift one side of the joint roughly 9% in volume per freeze. Slab edges near exterior doors and garage thresholds are the most common locations.

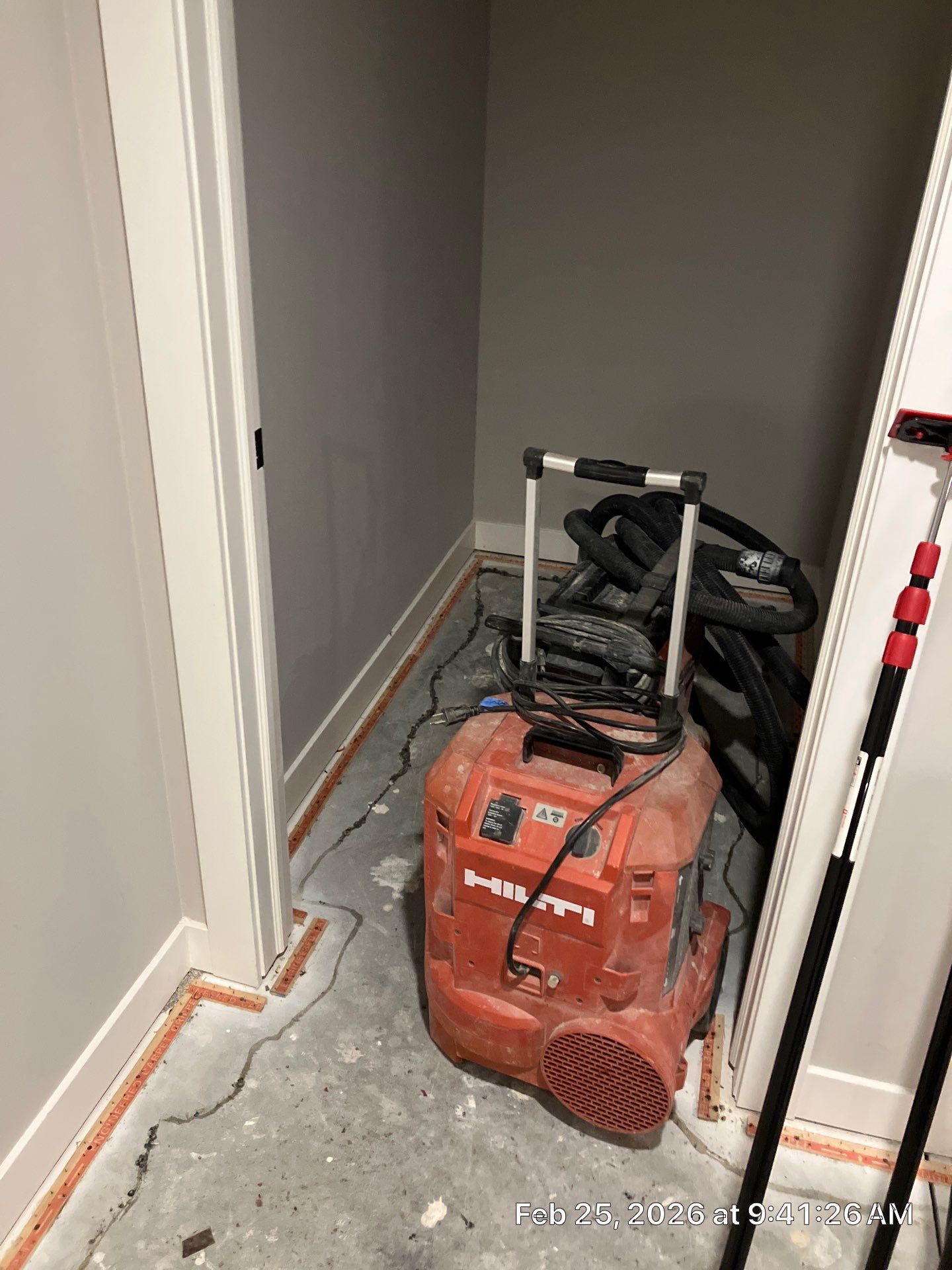

Underlying cause of concrete floor cracks diagnosed by cause, not by width alone in Midwest homes

Permanent Solutions

How foundation repair specialists actually fix concrete floor cracks diagnosed by cause, not by width alone.

Solving concrete floor cracks diagnosed by cause, not by width alone means addressing the underlying soil, pressure, or settlement cause. Not just patching the visible damage. Below are the engineered solutions we install most often for this symptom in Nebraska, Iowa, Kansas, and Missouri homes.

Foundation Repair solutions

Engineered foundation repair solutions for this problem.

Each method is matched to a specific failure mode and soil profile. Browse the toolkit we draw from when diagnosing your home.

Epoxy Crack Injection

Epp Foundation Repair has injected foundation cracks across Nebraska, Iowa, Kansas, and Missouri since 1994, and uses sequential polyurethane plus epoxy when one alone won't hold.

Polyurethane Foam Injection

Epp Foundation Repair has injected mid-soil polyurethane under settled slabs and foundations across Nebraska, Iowa, Kansas, and Missouri since 1994. Engineered lift in fifteen minutes.

Polyurethane Foam Injection

Epp Foundation Repair has injected closed-cell structural foam beneath driveways, sidewalks, garage floors, and pool decks across Nebraska, Iowa, Kansas, and Missouri since 1994. The slab lifts. The void fills. The work finishes in a single day.

Regional Context

Why foundation movement in Nebraska and Iowa needs a regional diagnosis

Loess soils across eastern Nebraska and western Iowa lose strength when wet. Expansive clay across northeast Kansas and northwest Missouri swells and shrinks with the seasons. Foundation movement here behaves differently than in states with stable bearing soil, which is why our diagnosis starts with the soil under the home, not just the crack on the wall.

36 to 42"

Frost penetration depth

Eastern Nebraska average

60 to 80

Freeze-thaw cycles / year

Lincoln to Omaha corridor

35 to 40"

Annual precipitation

NE / IA service region

30+

Years of regional inspections

30,000+ homes assessed

Loess soils and the crack patterns they produce

Most of eastern Nebraska and western Iowa sits on wind-deposited loess. a fine, silty soil 10 to 200+ feet deep. Loess holds its structure when dry but loses cohesion rapidly when saturated. After a wet spring, saturated loess expands against foundation walls. After a dry Nebraska summer, it contracts. pulling away from footings, creating voids beneath slabs, and producing the vertical and diagonal settlement cracks we see most frequently on the Lincoln, Omaha, Council Bluffs corridor.

The Marshall and Sharpsburg loess series. dominant across the eastern Nebraska service area. are particularly prone to this cyclical volume change. Homes built in the 1960s, 1980s on uncompacted loess backfill show the highest incidence of progressive settlement cracking in our inspection data.

Frost depth, freeze-thaw cycles, and horizontal cracking

Eastern Nebraska's 36, 42" frost penetration depth means the soil below grade freezes and thaws 60, 80 times per year. Each cycle applies lateral pressure to basement walls. A wall that holds through ten cycles can fail in the eleventh if drainage has worsened, backfill has settled, or the wall was already at capacity. Horizontal cracks near the soil grade line are almost always a freeze-thaw story in this region.

In eastern Kansas, expansive clay pockets near the surface introduce a different failure mode . consistent volume change regardless of frost depth. Horizontal cracking in Kansas foundations typically traces to clay expansion; the same pattern in Nebraska more often indicates frost-driven hydrostatic pressure.

"In a basement on the north side of Lincoln, I once measured a crack at 1/16 inch in March and 3/16 inch in August of the same year. The slab wasn't failing. The crack monitor reading just kept moving because a downspout had been pointing at the foundation since the house was built in 1974. Fix the downspout first. The crack stopped growing the next spring."

Dave Epp

President, Epp Foundation Repair

Why Choose Epp

Care and expertise from a team that's been doing this since 1994.

Epp Foundation Repair is locally owned and operated, with crews dedicated exclusively to foundation, basement, and concrete work across the Midwest.

Specialized expertise.

Foundation repair, waterproofing, and concrete leveling are our entire focus. not a sideline.

Locally owned since 1994.

Three decades of experience with Midwest soils, basements, and weather conditions.

BBB Integrity Award winner.

Recognized in 2011 and 2016 for ethical business practices and customer transparency.

Warrantied solutions.

Most product solutions carry 10 to 25-year warranties backed by the original installer.

EPP · SINCE 1994

Why hire Epp Foundation Repair.

MEET THE TEAM · 2 MIN

Frequently Asked Questions

Answers to common questions about Concrete Floor Cracks Diagnosed by Cause, Not by Width Alone.

Don't see your question here? Our team is happy to help. Reach out anytime.

Most hairline cracks under 1/8 inch in concrete floors are shrinkage cracks from the original cure and are cosmetic. Roughly 60% of the floor cracks Epp Foundation Repair inspects fall into this category. The cracks that warrant concern are wider than 1/8 inch, growing over time, paired with damp spots or hollow sounds, or running parallel to the perimeter wall 12 to 24 inches off the wall. A crack monitor and a 30-to-90-day re-measure produces a defensible diagnosis before any structural work is recommended.

Cosmetic shrinkage cracks need no repair; the cost is zero. Epoxy crack injection on a structural floor crack runs $400 to $800 per crack. Polyurethane foam injection to re-support a settled or voided slab runs $5 to $25 per square foot, typically totaling $2,000 to $8,000 for a basement slab section. Slab piers, when the settlement exceeds 1 inch and foam alone is insufficient, run $1,200 to $2,500 per pier. Full slab replacement is a flatwork contractor's scope and is not included in Epp's estimates. Written estimate after on-site inspection reflects your scope.

A crack running parallel to the basement wall, located 12 to 24 inches off the wall, is the classic signature of perimeter slab settlement. Across eastern Nebraska and western Iowa, basement slabs poured over uncompacted loess backfill settle 1/2 to 2 inches at the edges over the first 20 years of the home's life. The slab snaps along its weakest line as the edge drops. The fix is polyurethane foam injection to re-fill the sub-slab void; in severe cases, slab piers are added.

No. Epp does not pour new concrete slabs; that is a flatwork contractor's trade. Epp's scope on concrete floors is crack injection, polyurethane foam re-support, slab piers, and polyjacking or mudjacking on exterior slabs. If the slab is damaged beyond what those methods can address. Typically when the slab is broken into many pieces, has settled more than 3 inches, or is structurally compromised. Epp recommends a flatwork contractor and says so in writing. The honest scope limit keeps each trade accountable.

Sometimes, yes. A crack at the perimeter of a basement slab can indicate the perimeter footing is settling. A long diagonal crack across a slab center can indicate clay heave that is also pushing on the perimeter walls. Cracks paired with sticking doors, sloping floors, or matching exterior brick or stucco cracks point to broader foundation movement and warrant a full structural inspection, not just a slab repair. The 60 to 90 minute on-site inspection Dave Epp performs answers this question with measurement, not assumption. The BBB Integrity Award (2011 and 2016) reflects the company's standing rule of diagnostic certainty before quoting structural work.

The plumbing leak must be fixed first by a licensed plumber. A buried supply or sewer leak can erode 5 to 20 cubic feet of sub-slab fill in a few months, leaving an unsupported slab span that cracks across the void. Refilling the void with polyurethane foam before fixing the leak just wastes the foam. The new fill will erode the same way. Epp Foundation Repair coordinates the sequence: plumber first, then foam injection at $5 to $25 per square foot, then verification of slab stability.

Pricing ranges above are general estimates only and are not project quotes. A precise figure is provided on each written estimate after on-site inspection.
